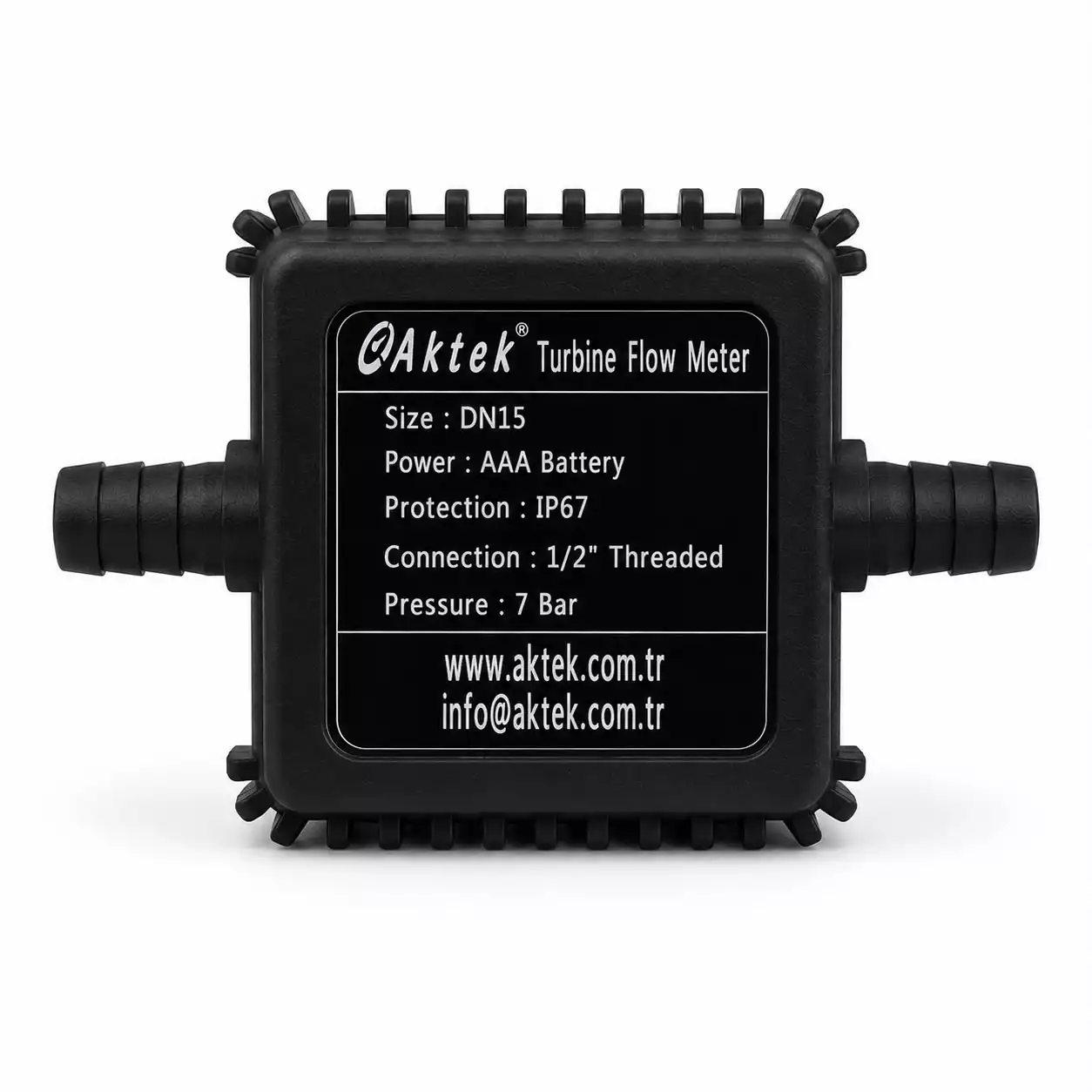

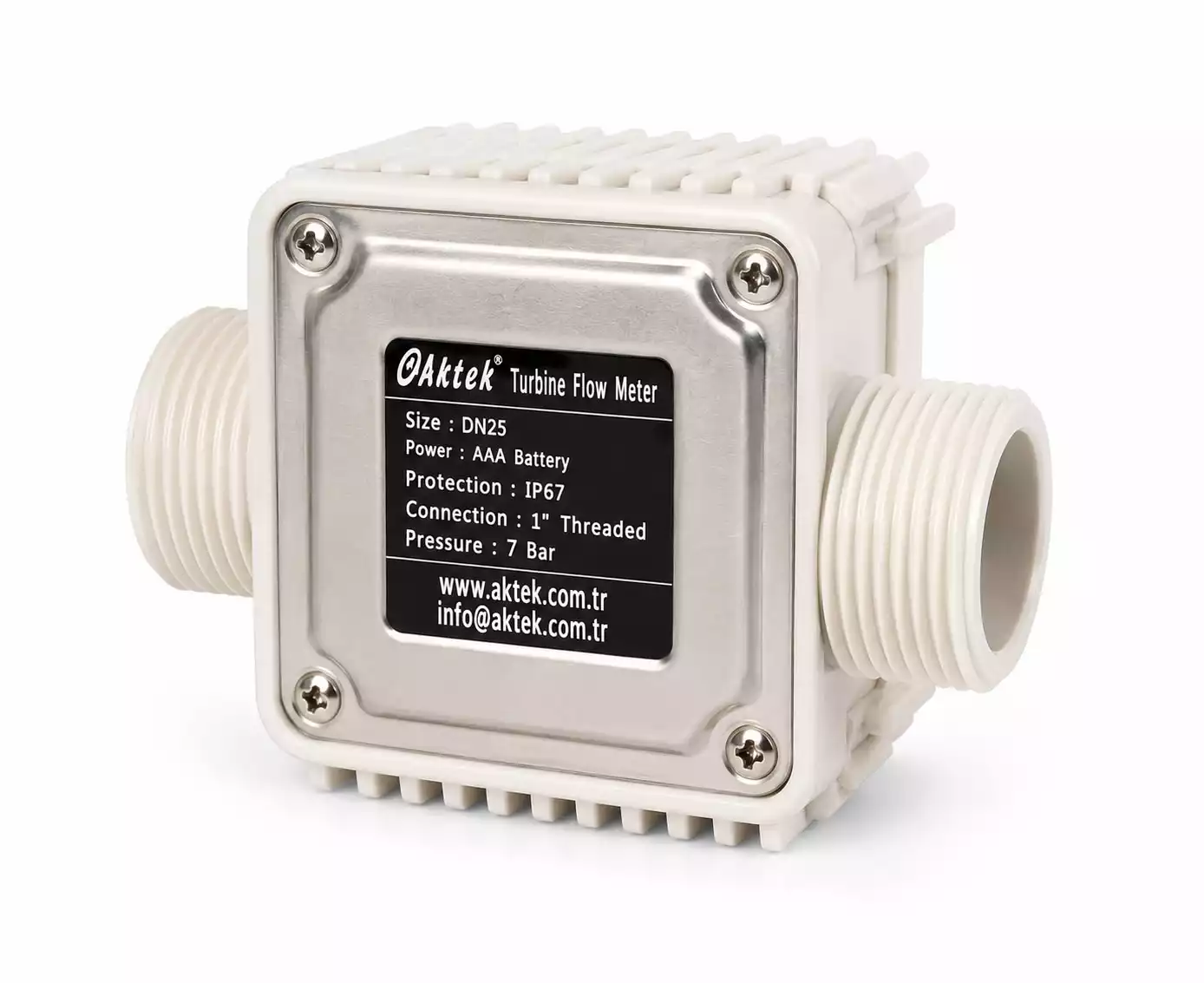

Fuel Meter / Turbine Flow Meter

The AK-24 Turbine Flow Meter is a compact flow measurement device designed for accurate flow rate and total volume measurement of low- and medium-viscosity liquids. Operating on the turbine measurement principle, the AK-24 provides reliable performance in industrial processes, fuel transfer systems, and chemical applications thanks to its high accuracy, low pressure loss, and easy installation.

• Measurement Principle: Turbine Flow Meter

• Suitable Fluids: Diesel, Urea (AdBlue), Kerosene, Gasoline, Water, and Various Chemicals

• Connection Sizes: 1/2", 3/4", 1"

• Flow Ranges:

• 0.5 – 20 L/min
• 1 – 50 L/min
• 10 – 120 L/min

• Accuracy: ±1%

• Repeatability: ±0.5%

• Maximum Working Pressure: 0.7 MPa (7 Bar)

• Operating Voltage: 2.3 – 3.3 VDC

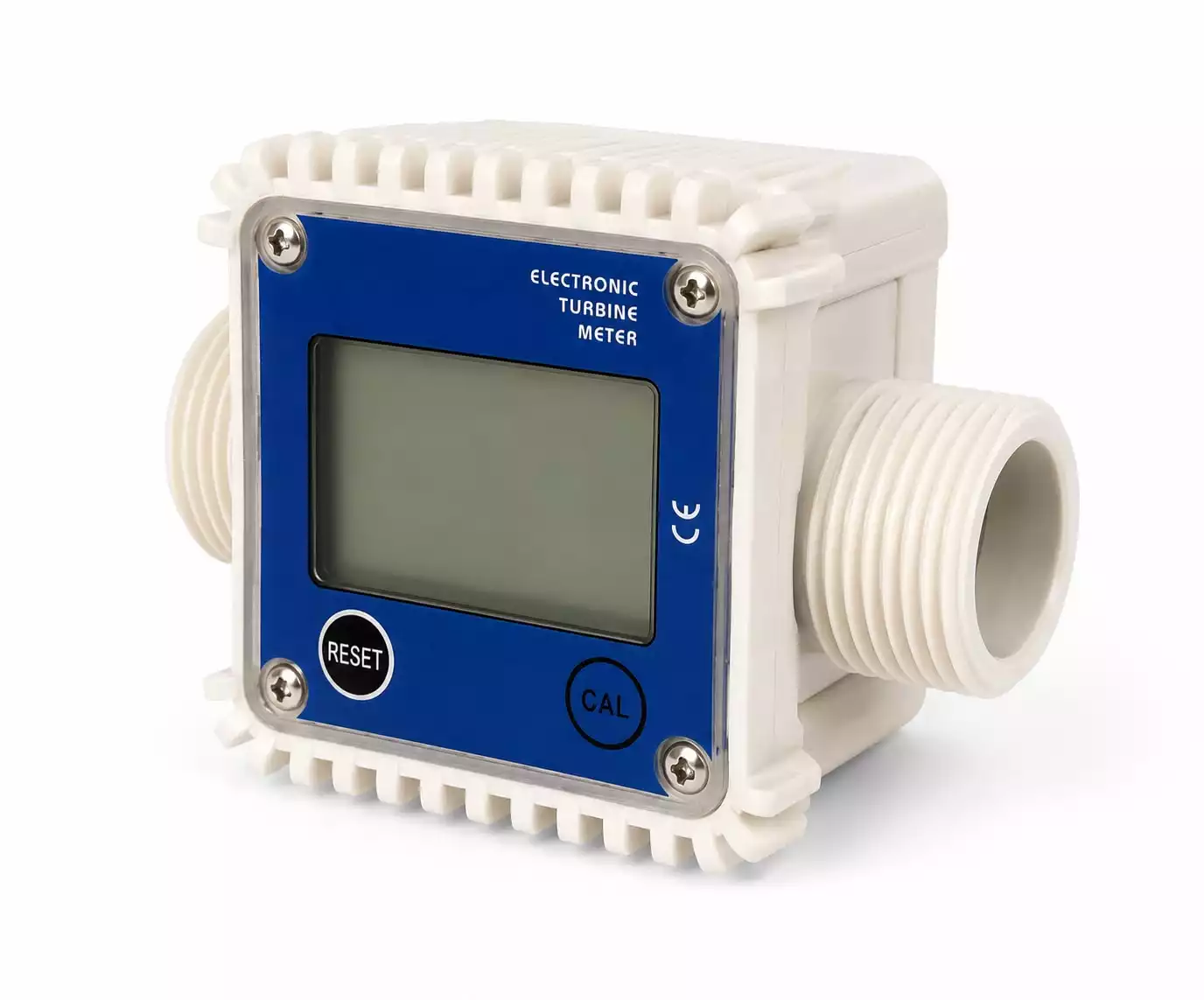

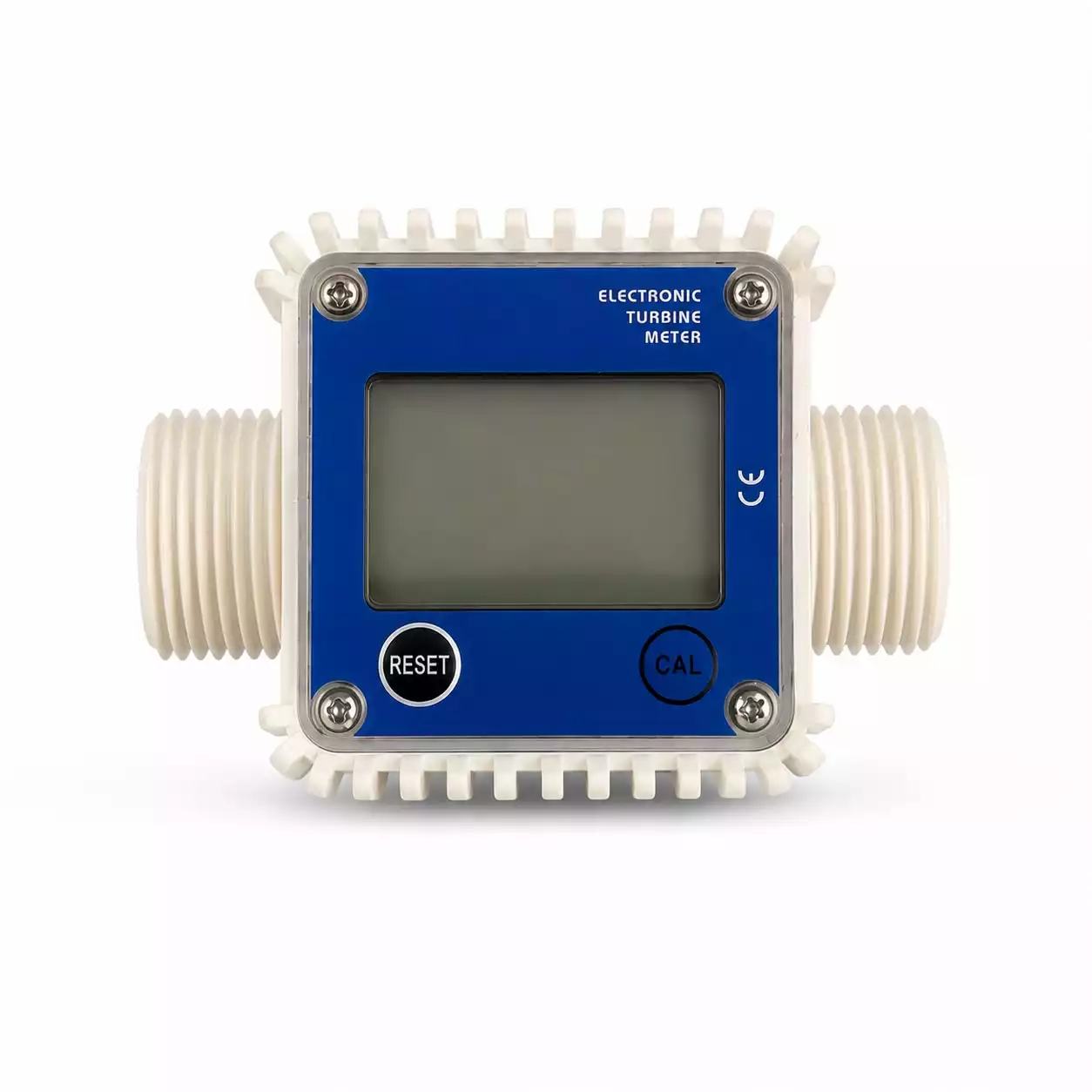

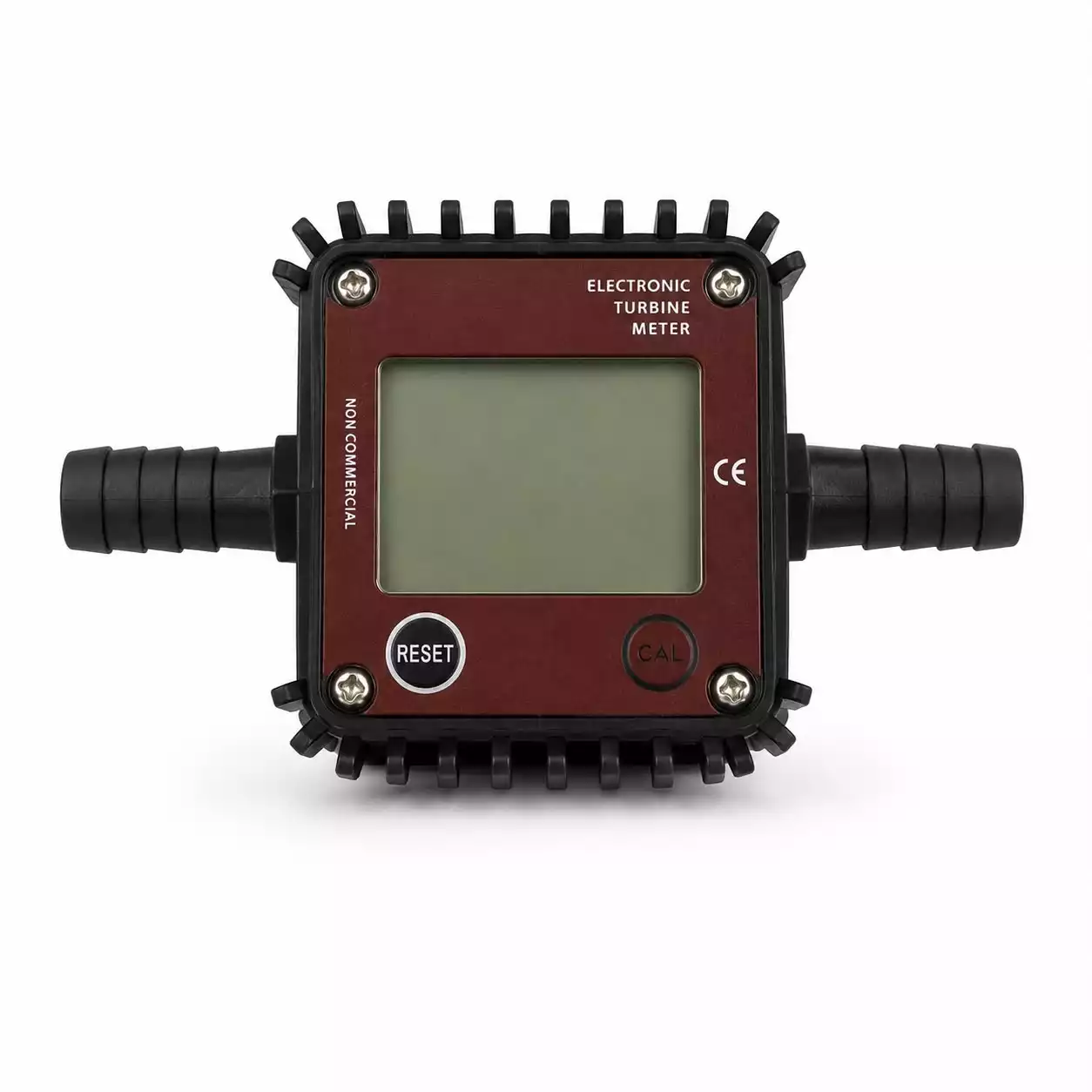

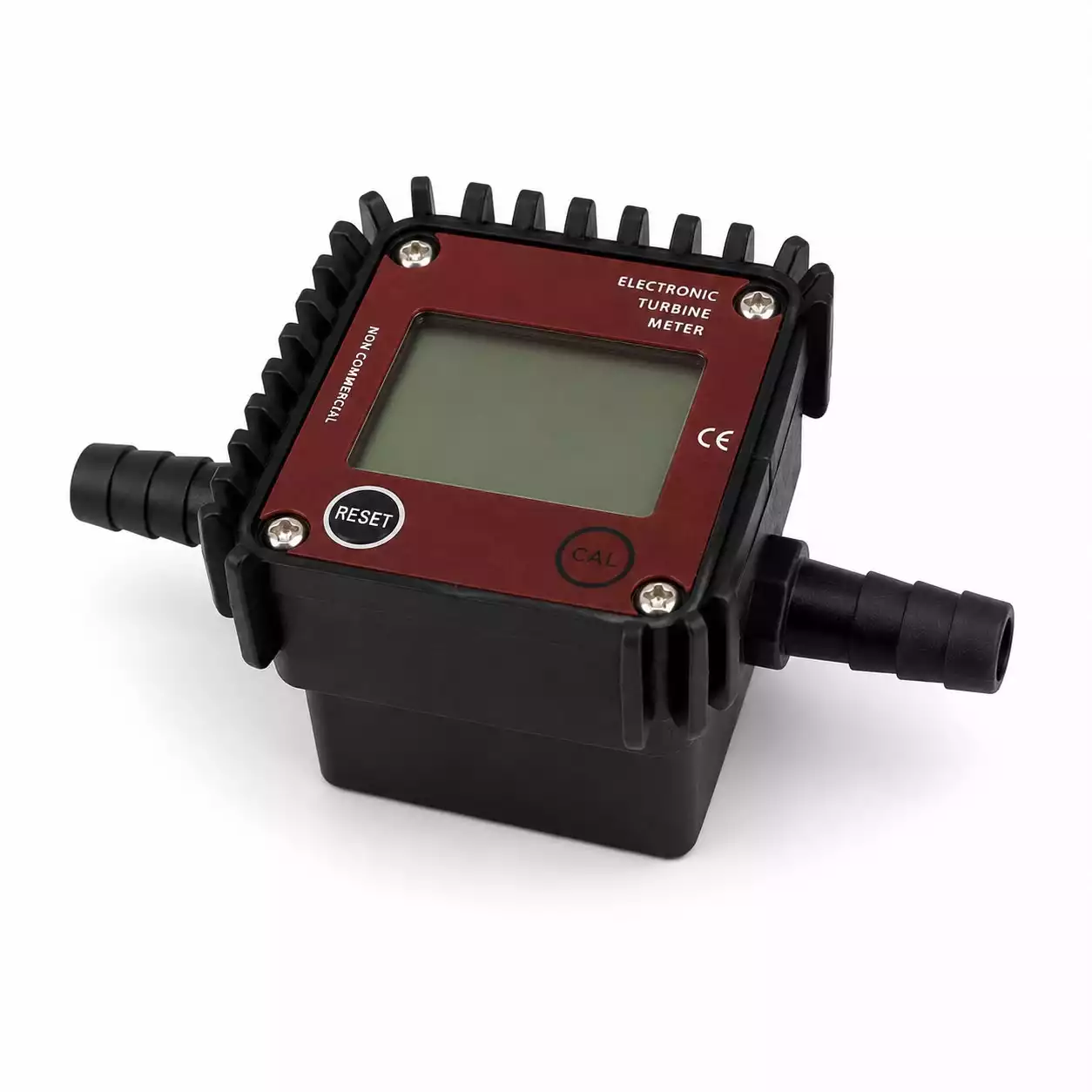

• LCD Digital Display

• Instantaneous Flow Rate and Totalizer Display

• Measurement Units: Liter (L), Gallon (GAL), Pint (PTS), Quart (QTS), Cubic Meter (m³)

• Adjustable K-Factor Calibration

• Single Measurement Counter Range: 0.000 – 999999

• Batch Total Range: 0 – 90,000,000

• Grand Total Range: 0 – 90,000,000

• Easy Operation with RESET and CAL Buttons

• Low Battery Warning Indicator

• Standby Time: Up to 1 Year

• Compact Design and Easy Installation
