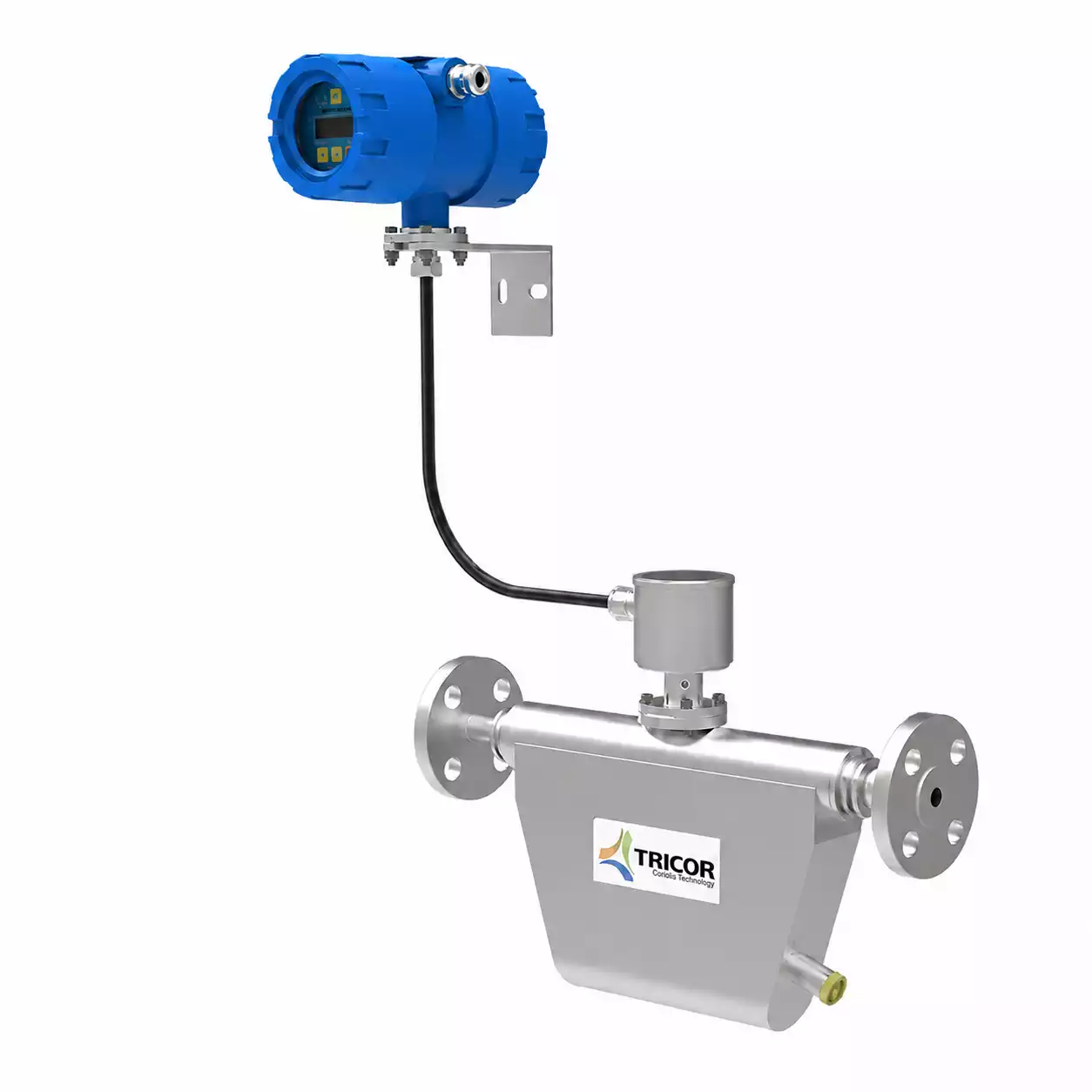

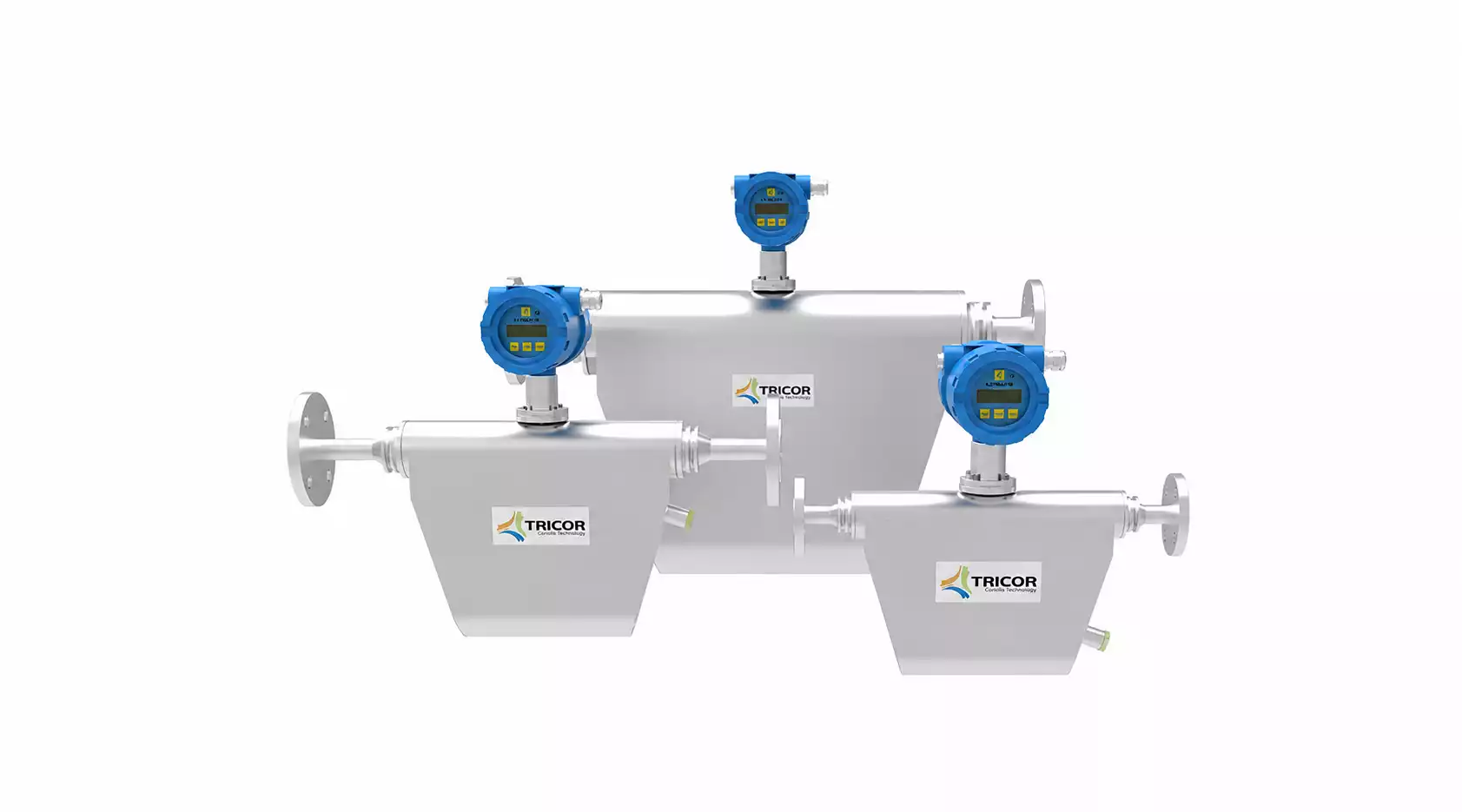

TCM-Coriolis Flow Meter
The unique design and proprietary manufacturing procedures of TRICOR Coriolis products produce perfectly balanced tubes for high accuracy, repeatability and process noise immunity. TRICOR Coriolis meters offer exceptional ease of use and fast setup time right out of the box. Our service team works with you to provide customized solutions to your real-world needs – from custom connections to pre-programmed transmitter parameters and reporting preferences. The TRICOR Coriolis family offers a broad portfolio with pricing options that scale to performance.
Application Areas
- Chemical and petrochemical industries
- Oil and natural gas applications
- Food and beverage production
- Pharmaceutical and cosmetics industries
- Paint, coating, resin and adhesive production
- Detergent and cleaning chemical production
- Automotive and fuel measurement systems
- Precision dosing, filling and blending processes
- Additive and chemical injection systems
- Loading, unloading and product transfer applications
- Density and concentration monitoring
- High-pressure process lines
- Explosive atmospheres and hazardous area applications
- Simultaneous monitoring of mass and volumetric flow
- Measurement of process temperature and fluid density
Measuring Accuracy:
± 0.1% of flow rate
Zero Stability:
± 0.01% of full scale
Repeatability:
± 0.05% of flow rate
Maximum Flow Rate:
TCM 0325: 325 kg/hr | 12 lbs/min | 325 l/hr | 1.43 gpm | 49 bbl/d (US)
TCM 0650: 650 kg/hr | 24 lbs/min | 650 l/hr | 2.86 gpm | 98 bbl/d (US)
TCM 1500: 1500 kg/hr | 57 lbs/min | 1500 l/hr | 6.82 gpm | 234 bbl/d (US)
TCM 3100: 3100 kg/hr | 114 lbs/min | 3100 l/hr | 13.65 gpm | 468 bbl/d (US)
TCM 5500: 5500 kg/hr | 202 lbs/min | 5500 l/hr | 24.22 gpm | 830 bbl/d (US)
TCM 7900: 7900 kg/hr | 290 lbs/min | 7900 l/hr | 34.78 gpm | 1193 bbl/d (US)
TCM 028K: 28,000 kg/hr | 1029 lbs/min | 28,000 l/hr | 123.3 gpm | 4227 bbl/d (US)
TCM 065K: 65,000 kg/hr | 2388 lbs/min | 65,000 l/hr | 286.2 gpm | 9812 bbl/d (US)
TCM 230K: 230,000 kg/hr | 8450 lbs/min | 230,000 l/hr | 1013 gpm | 34,720 bbl/d (US)
Standard Operating Pressure
TCM 0325: 2900 psi, 200 bar
TCM 0650: 2900 psi, 200 bar
TCM 1500: 2900 psi, 200 bar
TCM 3100: 2900 psi, 200 bar
TCM 5500: 5000 psi, 345 bar
TCM 7900: 1450 psi, 100 bar
TCM 028K: 1450 psi, 100 bar
TCM 065K: 1450 psi, 100 bar
TCM 230K: 1450 psi, 100 bar
Temperature
Temperature Repeatability: ±0.36°F (±0.2°C)
Temperature Accuracy: ±1.8°F ±0.5% of reading (±1°C ±0.5% of reading)
Process Temperature: Standard: -40°F to +212°F (-40°C to +100°C), Optional: -76°F to +392°F (-60°C to +200°C)
Density:
Density Range: up to 2500 kg/m³, 2.5 g/cm³
Density Accuracy: ±1.0 kg/m³, ±0.001 g/cm³
Density Repeatability: ±0.5 kg/m³, ±0.0005 g/cm³
Materials of Construction:
Tubes: 1.4404 / AISI 316L Stainless Steel
Case: 1.4404 / AISI 316L Stainless Steel
For more detailed material information, see Technical Datasheet or individual product Spec Sheets.
EX Certifications:
cCSAus: Class I, Division 1: Group A, B, C, D or C, D, T2…T4
ATEX: Zone 1: Group IIC or IIB, T2…T4 | Zone 2: II 3G Ex nA IIC T2…T4 Gc
IECEx: Zone 1: Group IIC or IIB, T2…T4
EAC (TR-CU): Group IIC or IIB, T2…T4
Triple Approval:
cCSAus + ATEX + IECEx: Zone 1: Group IIC or IIB, T2…T4 and Class I, Division 1: Group A, B, C, D or C, D, T2…T4
¹Stated flow accuracy combines the effects of repeatability, linearity and hysteresis.
